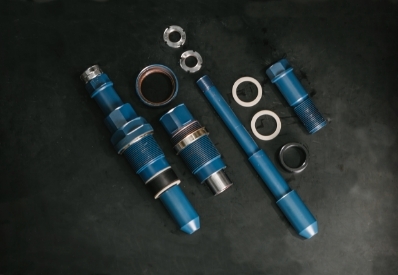

QV Tie Down Bolts
Tie-down bolts are used through the wall of a casing-head or tubing-head connection to lock down hangers or energise seals. Unity’s QV tie-down bolt is designed to provide enhanced sealing functionality.
Our new design consists of an internal packing element that gives a greater sealing footprint as well as a backup outer seal ring, which acts as an independent contingency. The outer face seal assembly can be changed without disturbing the main packing element and the packing element can be re-torqued during service to ensure continued seal integrity. An additional sealant pumping port feature can be added if required. Our tie-down bolts are fully hydrostatic and gas tested and are designed and independently verified to API 6A, with a range of benefits.
Benefits
Reduction in Operational Costs – Prevents multiple bolt change outs and the associated high cost, by providing more robust sealing capabilities than other tie down bolts on the market.
Improved Integrity – Multiple sealing functions reduces the risk of future leaks and larger packing seal footprint ensures higher tolerance against damaged seal bores.
Increased Service Life – Made from corrosion resistant alloys and coatings for increased lifespan.
