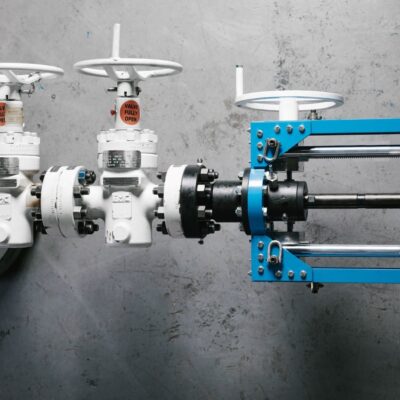

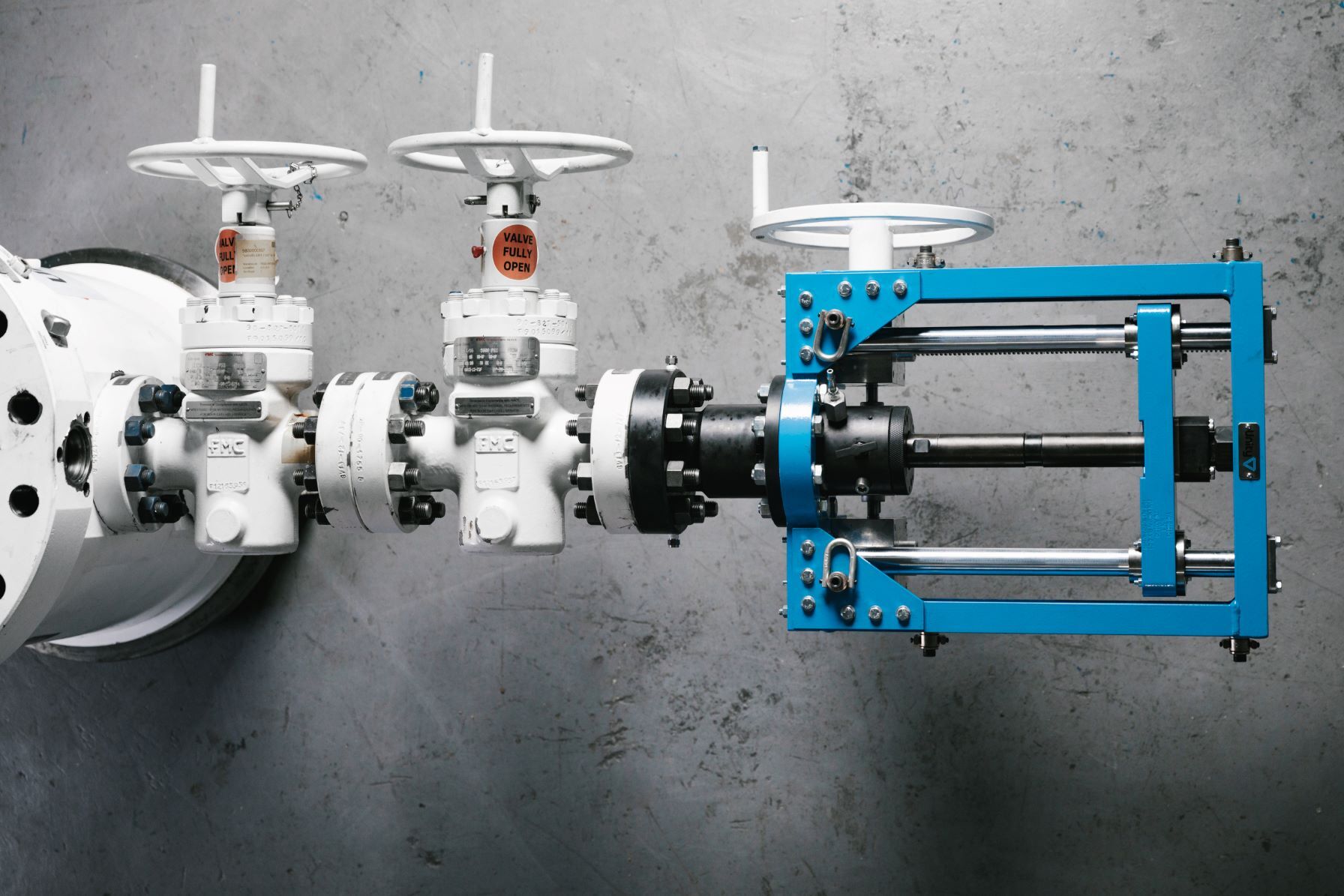

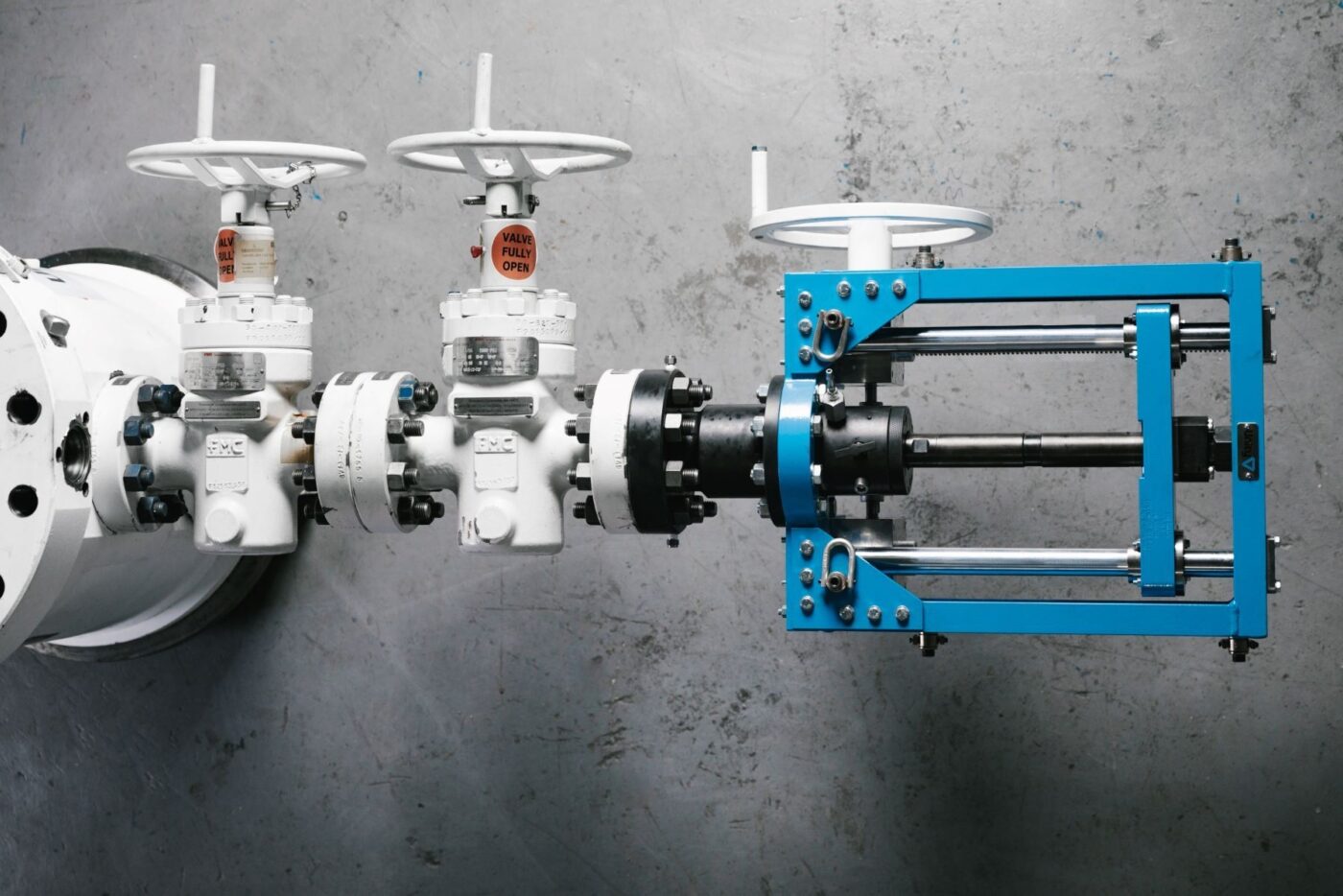

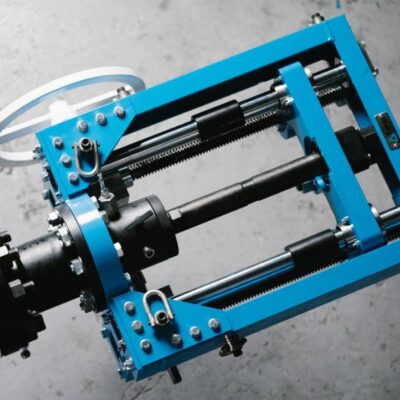

Compact Valve Removal Tool (CVR)
Unity’s CVR tool is the ideal solution for installing and retrieving valve removal (VR) plugs in tight wellbays. It uses a modular rod system allowing ease of transport and assembly on site. When assembled it measures just 795mm x 244mm x 457mm (31.3″ x 9.6″ x 18″).
The tool is hand operated using a hand wheel and a conventional bolt torque system to drive the VR plugs in and out of the VR profile. It can also use standard hydraulic pressure equipment for up to 1,200 lb/ft torque.
Benefits
Modular rod design allows tool to be transported and assembled on site
Compact and lightweight for use in tight spaces
Low pressure air supply and mechanical operation for ease of use without a hydraulic pressure unit
Modular flange system with various sizes and types available
Various sizes of sockets to suit client requirements.
